GRUPPO DI CONTINUITA' CON AVR, 850 VA
GRUPPO DI CONTINUITA' CON AVR, 850 VA
EG-UPS-002
8716309076098
Scheda Tecnica
Allegati
Scheda Prodotto
EG-UPS-002

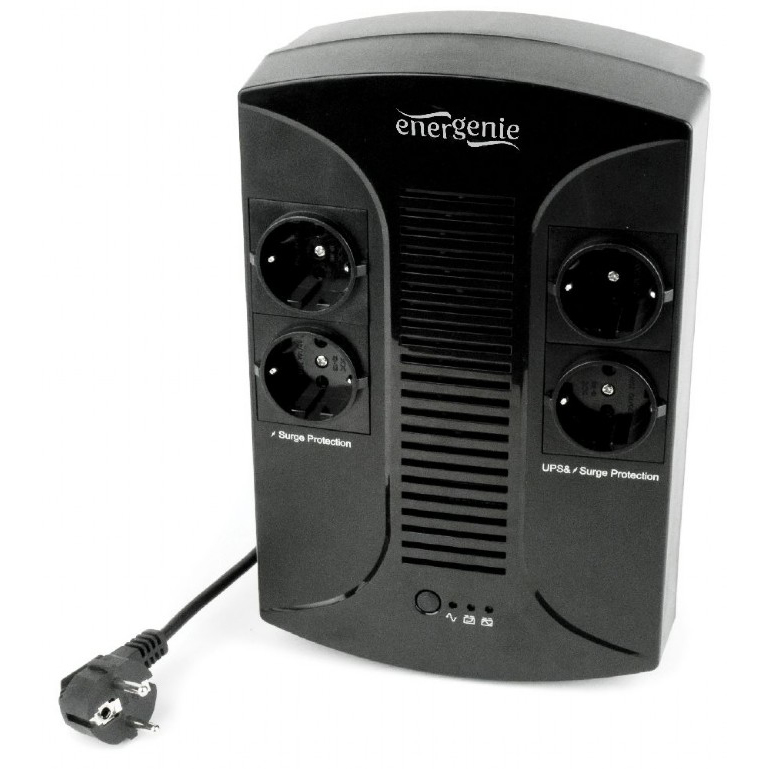

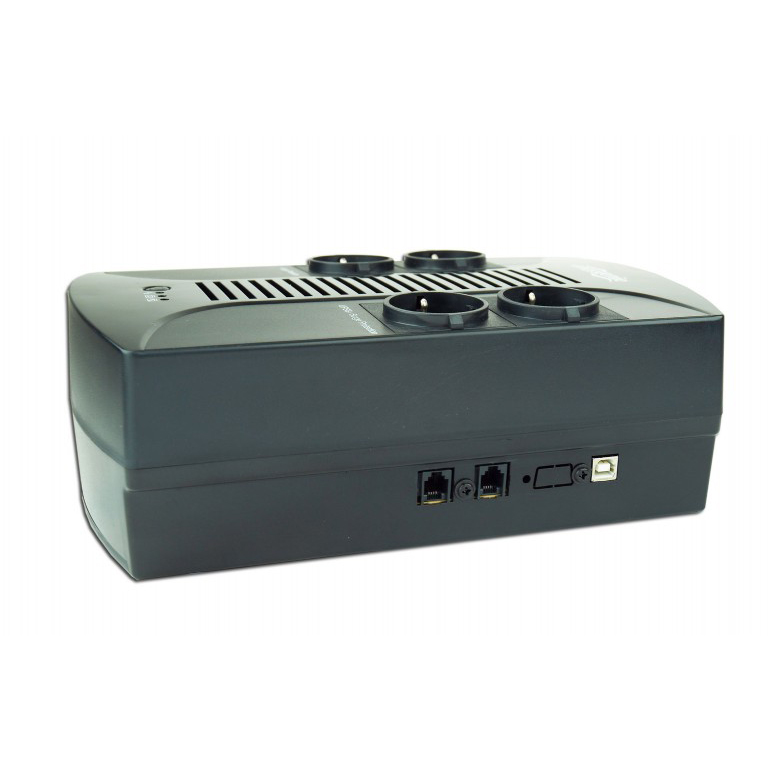

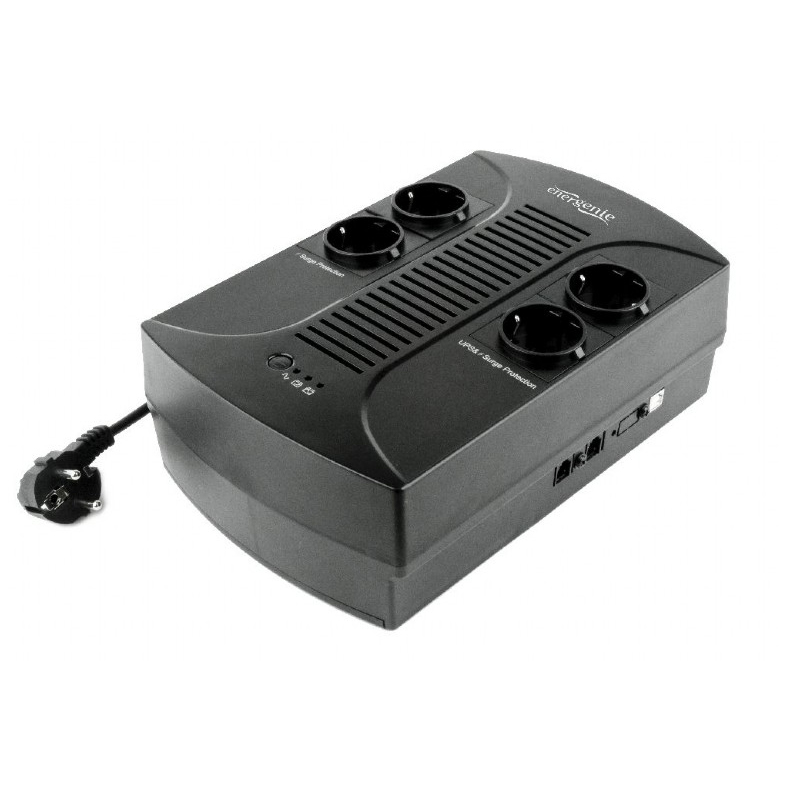

UPS with AVR, 850 VA
- ULTIMATE DEFENCE
- Table top design
- Provides backup power - prevents data loss
- Protects your sensitive and valuable equipment
- Compact and reliable - ideal for home and small office use
| pecifiche Tecniche | |
|---|---|
| Type: line interactive | |
| Waveform: sine wave (AC mains), modified (square) sine wave (battery) | |
| Input: 220 V AC ± 25%, 50 / 60 Hz ± 10% | |
| Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode) | |
| Switching time: less than 10 ms | |
| Backup time: 10...30 mins (depends on the load) | |
| Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V DC / 8Ah | |
| Charge time: up to 8 hours | |

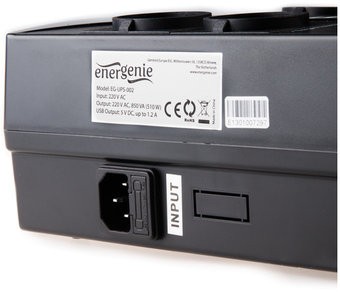

| Sockets: 1 x C13 (input), cable CEE 7/7P, 4 x Schuko (output) | |
| Sockets with UPS backup: 2 pcs | |
| Operating conditions: 0°C~40°C, at humidity 20~90%RH non condensing | |
| Power: 850 VA (510 W) | |
| Charging current: up to 1.2 A | |
| Noise: < 45 dB at 1 m distance | |
| Dimensions: 280 x 185 x 95 mm | |
| Product weight: 5.6 kg | |
| "Cold-start" function | |
| Requisiti di sistema |
|---|
| In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work. |
EG-UPS-002
UPS with AVR, 850 VA
- ULTIMATE DEFENCE
- Table top design
- Provides backup power - prevents data loss
- Protects your sensitive and valuable equipment
- Compact and reliable - ideal for home and small office use
| pecifiche Tecniche | |
|---|---|
| Type: line interactive | |
| Waveform: sine wave (AC mains), modified (square) sine wave (battery) | |
| Input: 220 V AC ± 25%, 50 / 60 Hz ± 10% | |
| Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode) | |
| Switching time: less than 10 ms | |
| Backup time: 10...30 mins (depends on the load) | |
| Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V DC / 8Ah | |
| Charge time: up to 8 hours | |
| Sockets: 1 x C13 (input), cable CEE 7/7P, 4 x Schuko (output) | |
| Sockets with UPS backup: 2 pcs | |
| Operating conditions: 0°C~40°C, at humidity 20~90%RH non condensing | |
| Power: 850 VA (510 W) | |
| Charging current: up to 1.2 A | |
| Noise: < 45 dB at 1 m distance | |
| Dimensions: 280 x 185 x 95 mm | |
| Product weight: 5.6 kg | |
| "Cold-start" function | |
| Requisiti di sistema |
|---|
| In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work. |
